The AVENTICS™ IP Converter 3460565500 is an electro‑pneumatic (E/P or I/P) converter that transforms a 4–20 mA electrical control signal into a precise pneumatic output (typically 3–15 psi), making it ideal for marine engine control, governor systems, and CPP actuation.
AVENTICS™ (E/P or I/P) Converter 3460565500

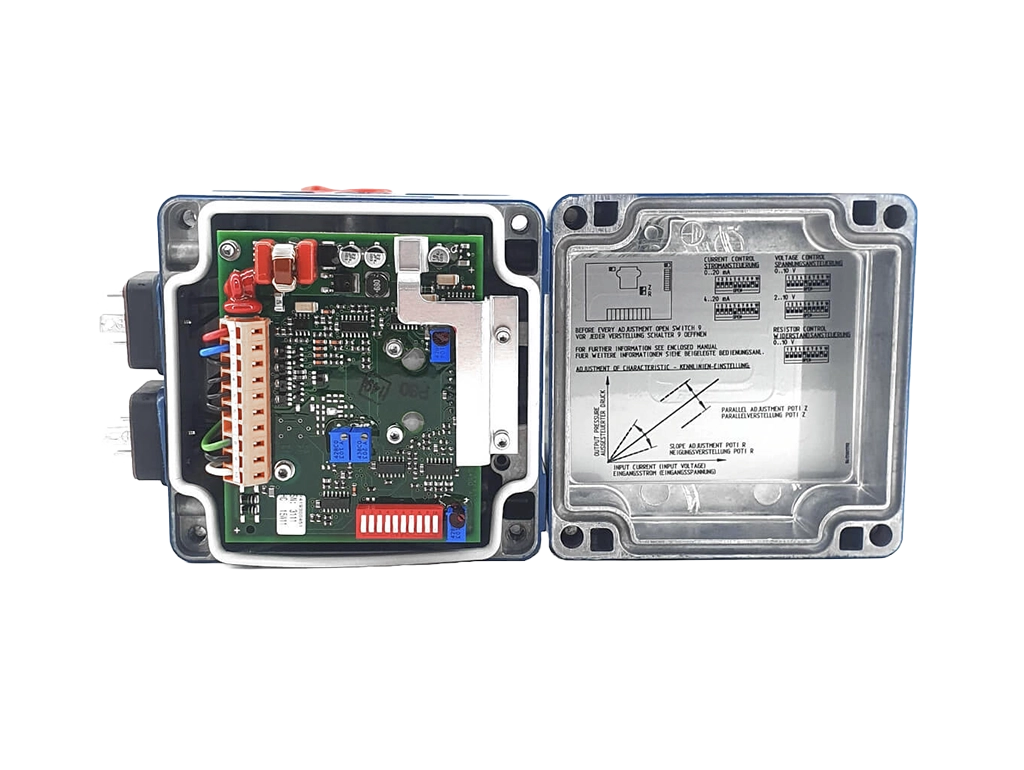

The AVENTICS™ IP Converter 3460565500 is a high‑precision electro‑pneumatic transducer designed to convert standard industrial electrical signals (4–20 mA) into proportional pneumatic pressure. This makes it a critical interface component between electronic control systems and pneumatic actuators in marine and industrial automation.
Used extensively in marine propulsion systems, the converter provides stable and accurate pressure output for applications such as MAN engine VIT control, pneumatic governors, and controllable‑pitch propeller (CPP) systems. Its rugged construction and class approvals (DNV, etc.) ensure reliable operation in harsh marine environments.
The 3460565500 model corresponds to the Aventics/Rexroth Type 7291 E/P Converter, known for its durability, fast response, and compatibility with OEM systems from MAN, HHI, Yanmar, Nabtesco and others.
Specifications
| Parameter | Value |
|---|---|
| Manufacturer | AVENTICS™ / Bosch Rexroth |
| Model / Part Number | 3460565500 |
| Product Type | Electro‑Pneumatic (E/P) Converter / I/P Transducer |
| Function | Converts 4–20 mA electrical signal to pneumatic pressure |
| Output Pressure Range | 3–15 psi (standard marine control range) |
| Input Signal | 4–20 mA |
| Typical Supply Voltage | 24 VDC |
| Application | Marine engine control, CPP systems, pneumatic governors, VIT control |
| Industry | Marine automation, industrial pneumatics |
| Housing Material | Marine‑grade aluminum (per distributor data) |
| Weight | Approx. 2.2 kg (packaged) |
| Approvals | DNV and other marine class approvals |
| OEM Compatibility | MAN, HHI, Yanmar, Nabtesco, WABCO, Westinghouse |
| Condition | New (we can also offer reconditioned) |
