The APL-210N Limit Switch Box is a compact, weatherproof enclosure designed for mounting on quarter-turn pneumatic actuators to provide remote indication of valve position. Featuring a robust aluminum die-cast housing with IP67 protection, it includes two SPDT mechanical switches, a high-visibility dome indicator, and tool-free adjustable cams. Ideal for marine, chemical, and water treatment applications requiring reliable valve status feedback.
APL-210N Limit Switch Box
The APL-210N is a rugged and reliable limit switch box (also known as a valve position indicator or feedback device) designed to provide both local visual indication and remote electrical feedback of valve position. It is specifically engineered for mounting on quarter-turn pneumatic or electric actuators, such as those used for ball valves and butterfly valves.
Clear Visual and Electrical Feedback
The unit features a durable, transparent polycarbonate dome with a highly visible mechanical indicator. The indicator shows a clear Yellow flag for the “Open” position and Red for “Closed” , allowing operators to instantly verify valve status from a distance. Internally, the APL-210N is equipped with two SPDT (Single Pole Double Throw) mechanical switches, which provide separate electrical signals for the open and closed positions to a PLC, DCS, or remote monitoring system. Each switch includes a common (COM), normally open (NO), and normally closed (NC) contact, offering maximum wiring flexibility.
Tool-Free Adjustment and Easy Installation

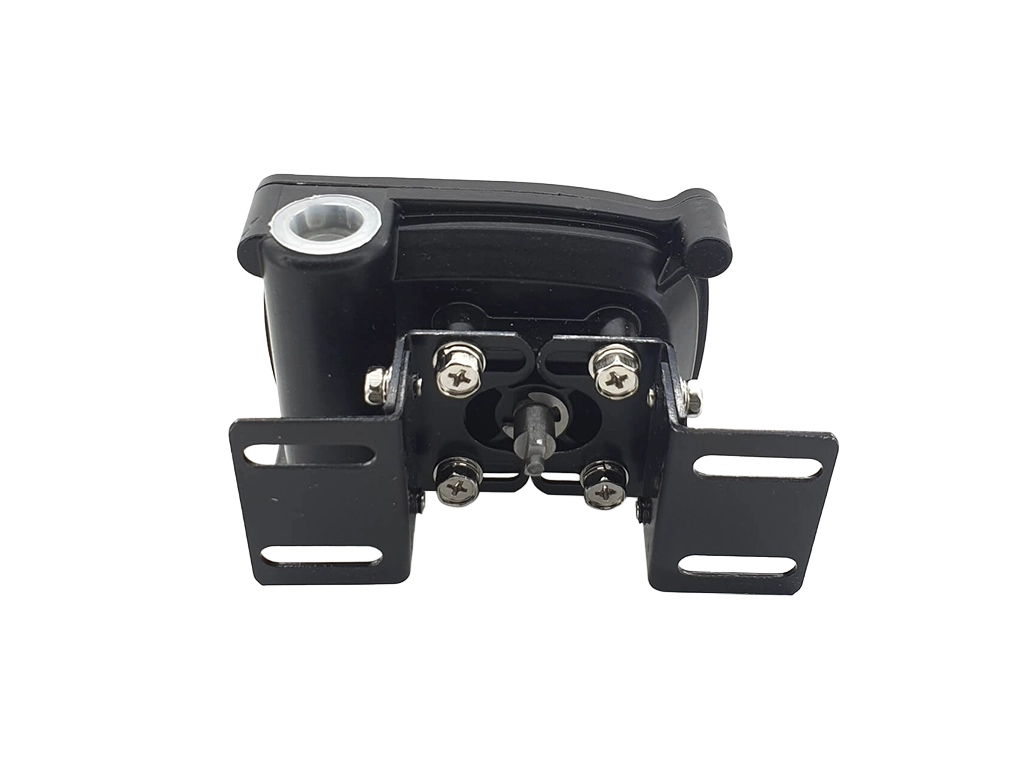

One of the key features of the APL-210N is its “Quick-Set” cam mechanism. The cams are spring-loaded and mounted on splined shafts, allowing for fast and precise adjustment without any tools. Once set, they maintain their position, ensuring reliable long-term operation. The box includes a mounting bracket that complies with the NAMUR VDI/VDE 3845 standard, guaranteeing a perfect fit on most commercially available pneumatic actuators . Captive cover bolts prevent loss during maintenance.
Rugged Construction for Harsh Environments
Built to withstand demanding industrial and marine environments, the APL-210N features a die-cast aluminum alloy enclosure with a corrosion-resistant polyester powder coating . It boasts an IP67 protection rating, making it dust-tight and protected against temporary immersion in water, suitable for deck or outdoor installations. Dual cable entries (standard 1/2″ NPT) provide flexibility for wiring, and an internal 8-point terminal strip simplifies electrical connections.
APL-2N Series
- Degree of protection: IP67 / NEMA4 & 4X (standard) IP68 (option)
- Rugged and compact case design
- The switch position can be cleared by the indicator
- Two-wire interface: Dual 1 / 2NPT pipe interface (standard) /M20,PG13.5,PF1/2 “, PT1 / 2” (option)
- Terminal: 8 points (0.08-2.5mm2)
- Anti-off bolts
- Easy installation, stainless steel spindle connection part and mounting bracket are in line with NAMUR standard
Specifications
| Specification | Details |
|---|---|
| Model | APL-210N |
| Enclosure Rating | Weatherproof IP67 / NEMA 4 & 4X (Standard) |
| Housing Material | Die-cast Aluminum Alloy with Polyester Powder Coating |
| Switches | 2 x SPDT (Single Pole Double Throw) Mechanical Switches |
| Switch Rating (Resistive) | AC: 250V / 3A, 125V / 5A DC: 250V / 0.2A, 125V / 0.4A, 30V / 4A, 8V / 5A |
| Visual Indicator | Dome Type: Yellow (Open) / Red (Closed) |
| Cable Entries | Standard: 2 x NPT 1/2″ Options: M20, PG13.5, PF 1/2″, PT 1/2″ |
| Terminal Strips | 8 points (0.08 – 2.5 mm²) |
| Cam Adjustment | “Quick-Set” Spring-Loaded Splined Cam (Tool-Free) |
| Travel Angle | 0° ~ 90° (Quarter-Turn) |
| Shaft / Bracket | Stainless Steel Shaft / NAMUR Standard Bracket (VDI/VDE 3845) |
| Ambient Temperature | -20°C to +80°C |
| Conduit / Bolts | Stainless Steel hardware |
| Optional Features | Proximity sensors (Inductive or Magnetic), IP68 enclosure, 3-way indicator (Green/Red), Explosion-proof versions (Ex d) |
