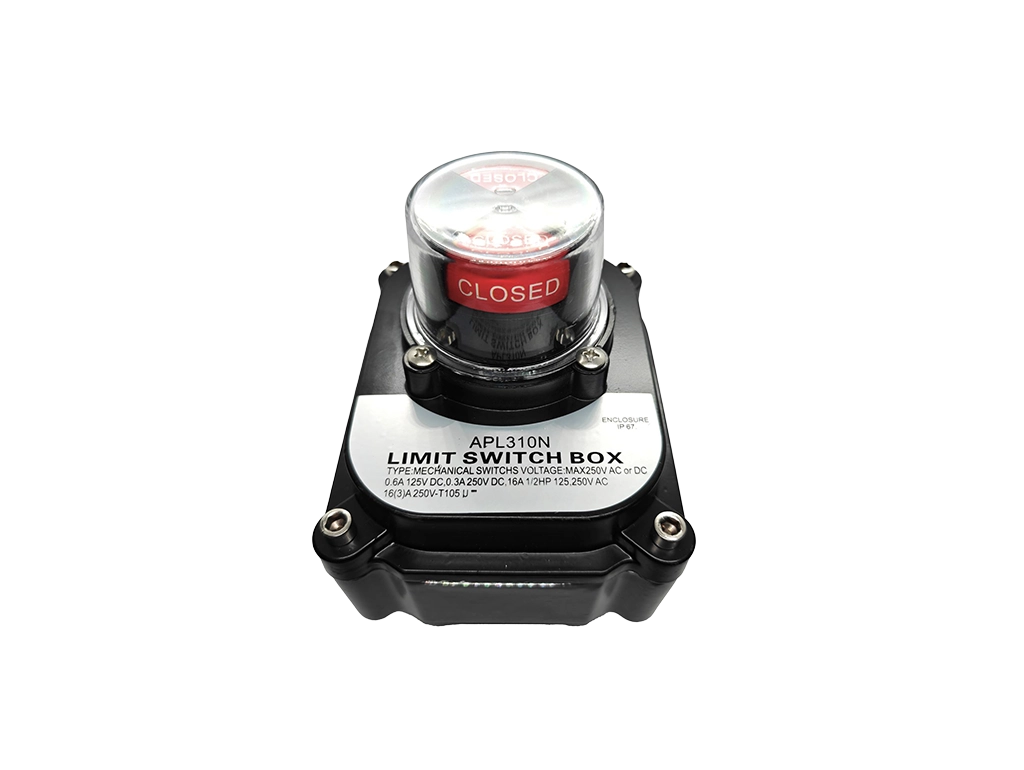

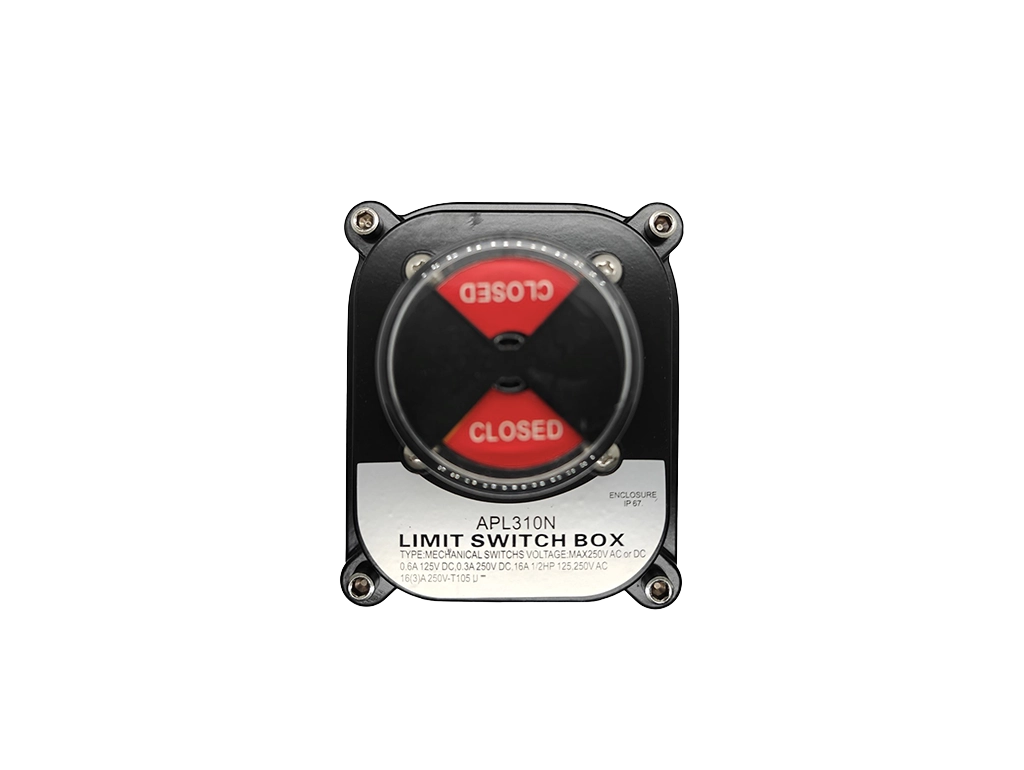

LIMIT SWITCH BOX APL-310N
APL-3N Series
- Degree of protection: IP67 / NEMA4 & 4X (standard) IP68 (option)
- Sturby beautiful shell design addiniotal limit
- Switch: 3~4 mechanical switch addiniotal wiring
- Terminal: 8~16 points
- The switch position can be cleared by the indicator
- Two-wire interface: Dual 1 / 2NPT pipe interface (standard) /M20,PG13.5,PF1/2 “, PT1 / 2” (option)
- Terminal: 8 points (0.08-2.5mm2)
- Anti-off bolts
- Easy installation, stainless steel spindle connection part and mounting bracket are in line with NAMUR standard

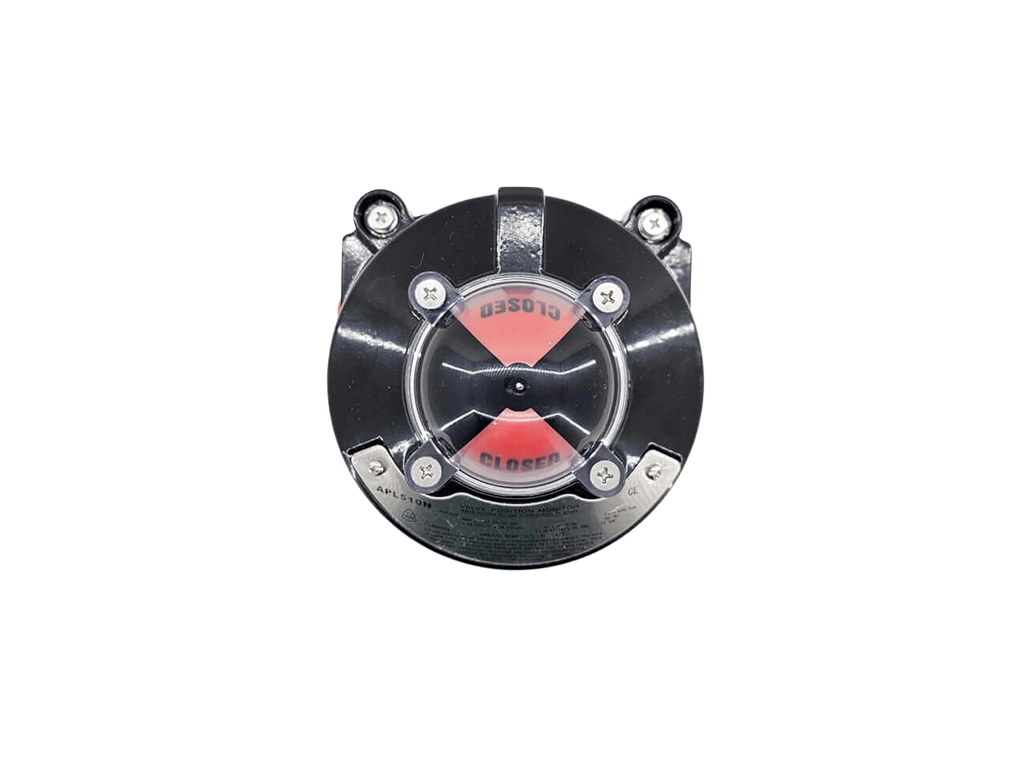

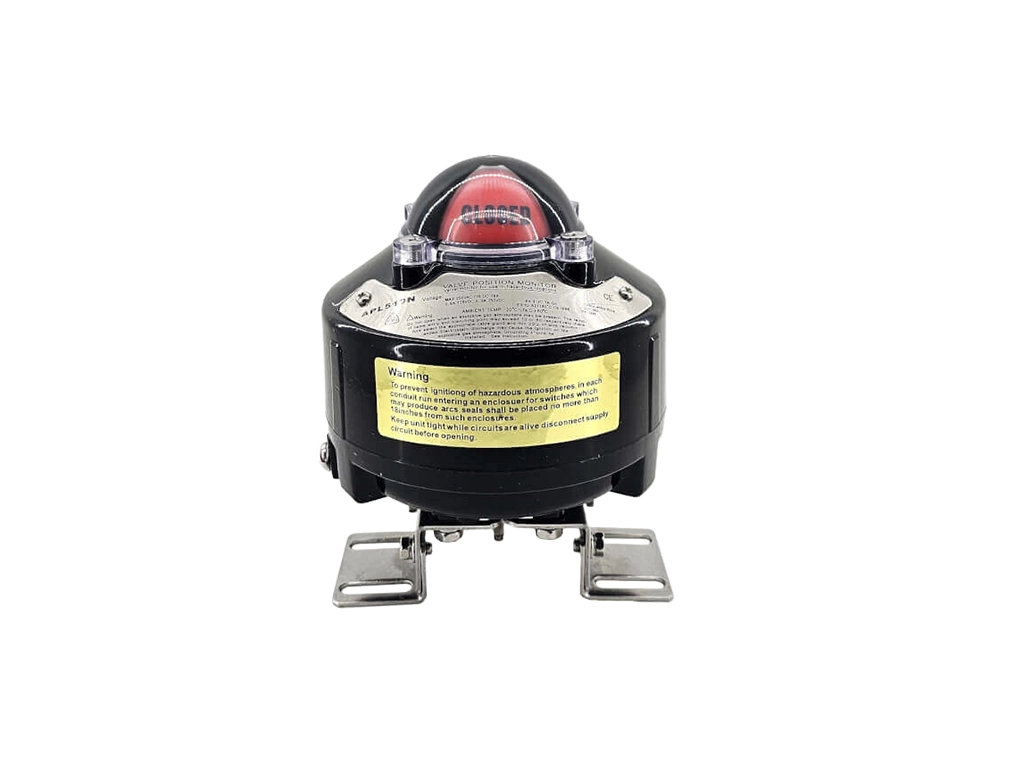

LIMIT SWITCH BOX APL-510N EXPLOSION PROOF (EX)
APL-5N Series
- Degree of protection: IP67 / NEMA4, 4X, 7,9 (standard) IP68 (option)
- Explosion-proof grade: EEx d IIB T6, EEx d IIC T6, EEx ia IIC T6
- Sturdy and beautiful housing, the housing is equipped with a spindle (biaxial)
- Easy installation of visual position indicator
- Unique design fixes the cap by bolting the cap
- Dual cable entry: 2 / 4PF (standard) / M20, M25, NPT3 / 4 “, PT3 / 4”
- Terminals: 8 points (0.08-2.5mm2)
- Anti-off bolts, spring reinforcement
- The unique design holds the bolt in the housing, and the bolt does not fall off when the housing is opened
- Easy to install bracket
- Stainless steel spindles and stainless steel or steel brackets are NAMUR compliant

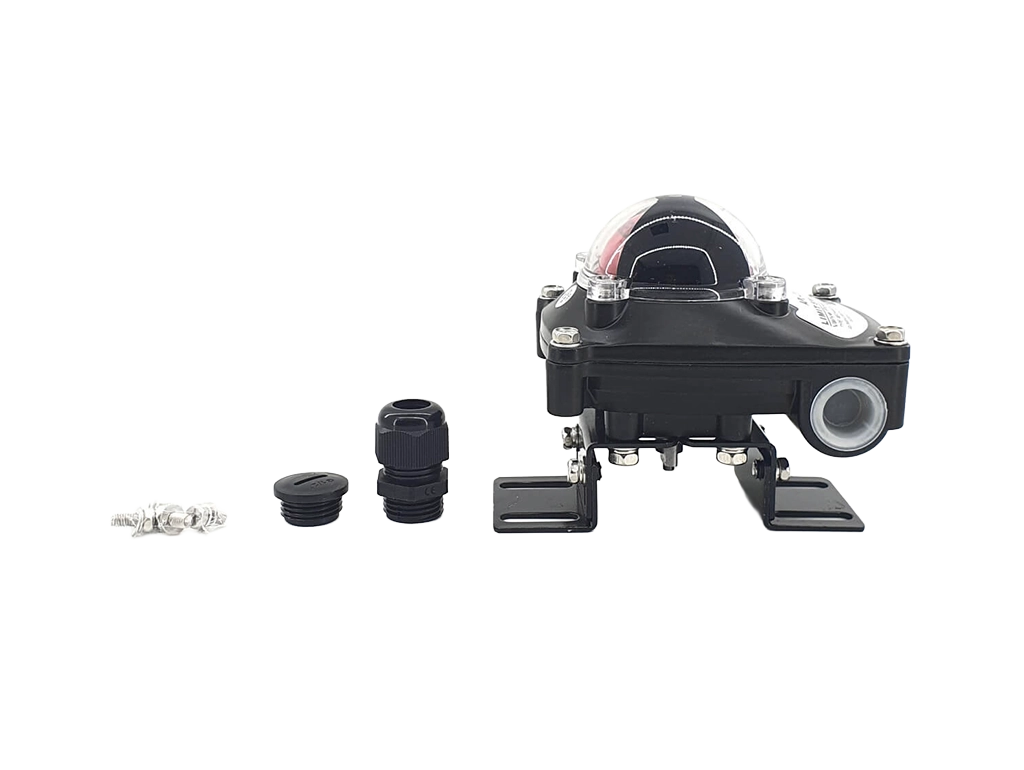

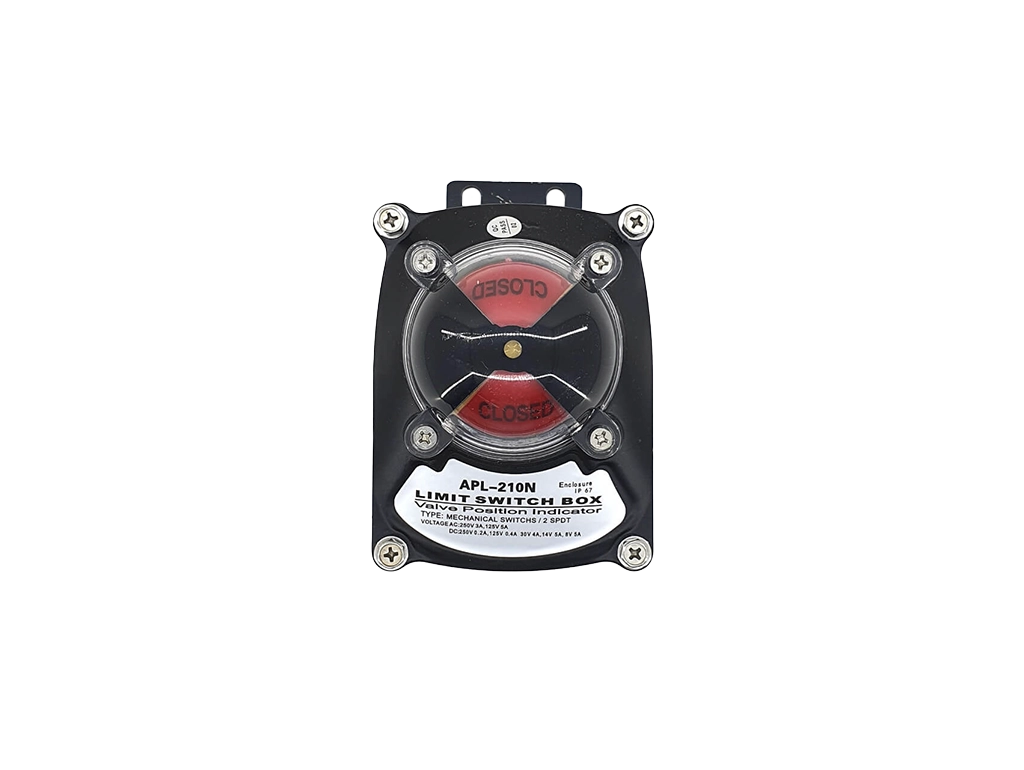

LIMIT SWITCH BOX APL-210N
APL-2N Series
- Degree of protection: IP67 / NEMA4 & 4X (standard) IP68 (option)
- Rugged and compact case design
- The switch position can be cleared by the indicator
- Two-wire interface: Dual 1 / 2NPT pipe interface (standard) /M20,PG13.5,PF1/2 “, PT1 / 2” (option)
- Terminal: 8 points (0.08-2.5mm2)
- Anti-off bolts
- Easy installation, stainless steel spindle connection part and mounting bracket are in line with NAMUR standard

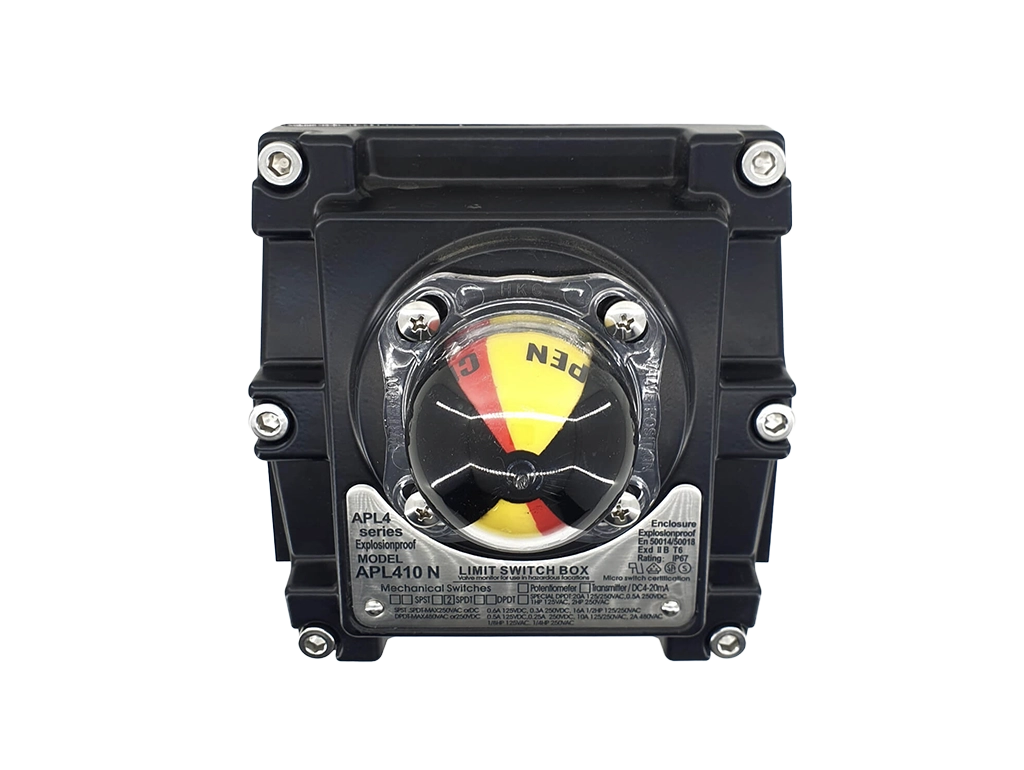

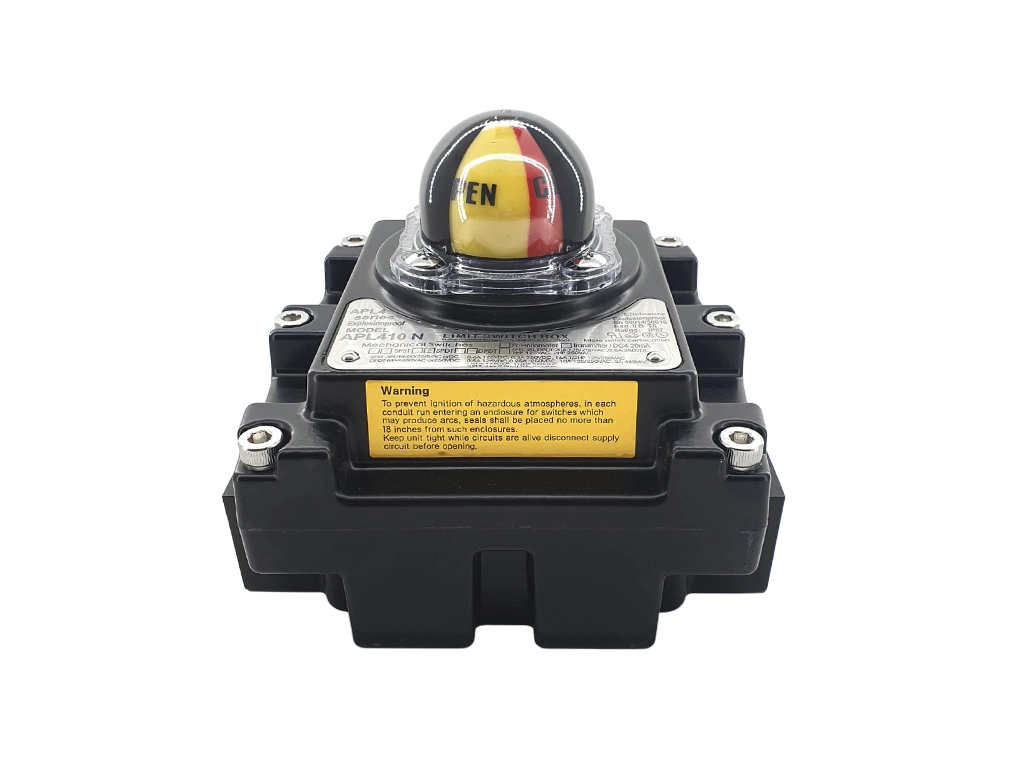

LIMIT SWITCH BOX APL-410N EXPLOSION PROOF (EX)
APL-4N Series
- Degree of protection: IP67 / NEMA4, 4X 7, 9 (standard) IP68 (option)
- Explosion-proof grade: EEx dIIB T6, certified by China NEPSI
- Rugged and beautifil Additional limit switch: 3~4 mechanical switches
- Additional terminals: 8 to 20 points
- A variety of optional switches
- Cable access: 2×3 / 4 NPT (standard) / M20, M25, PF3/4″, PT3/4″ 4 Cable entries
- 0 Wire port: 8 points (0.08-2.5mm2)
- Easy installation, stainless steel spindle connection part and mounting bracket are in line with NAMUR standard
